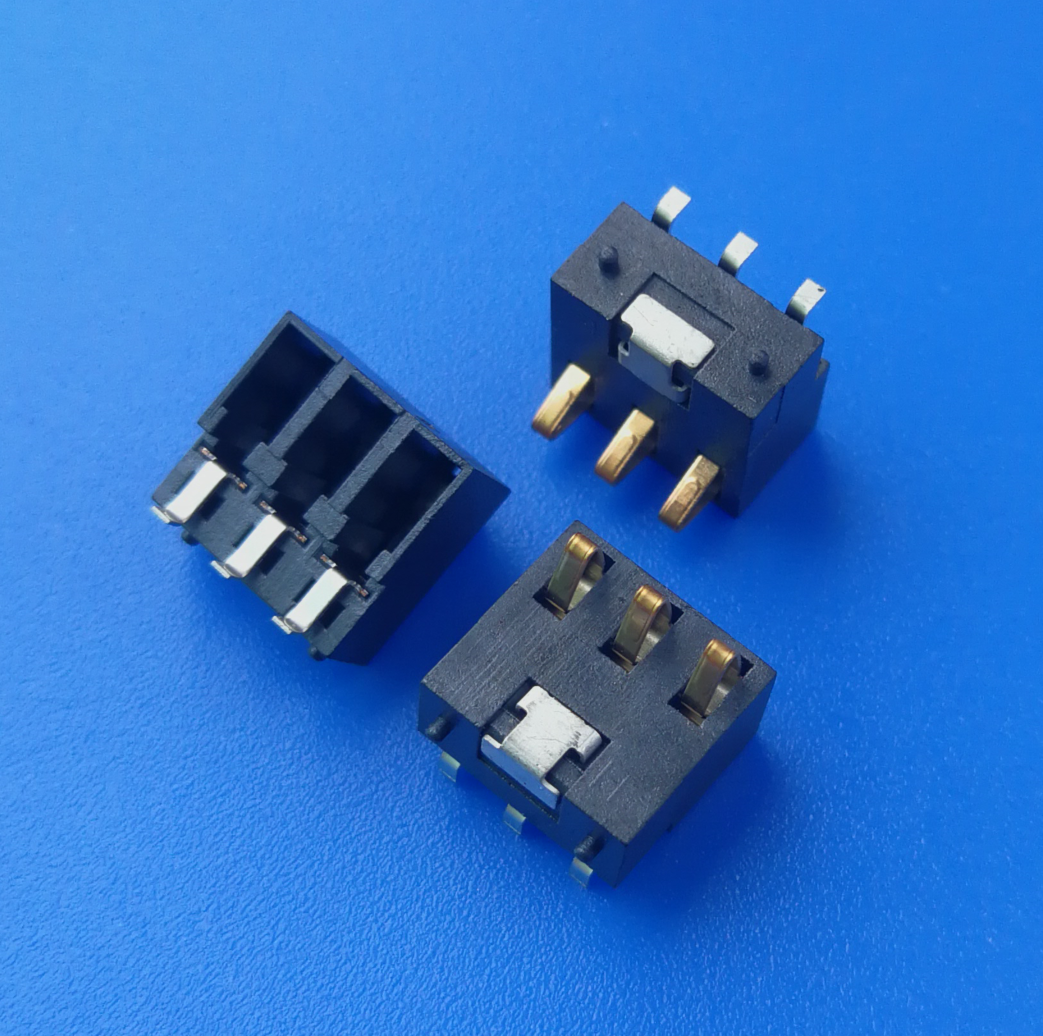

Professional 2.5mm Pitch 3Pin Battery Connector
The 2.5mm Pitch 3Pin Battery Connector is a high-performance electronic connector specially designed for POS machines, mobile phones, handheld terminals, and communication devices. Built with precision engineering and durable materials, this connector ensures stable electrical performance and secure battery connectivity for modern electronic applications.
Stable & Reliable Electrical Performance
Engineered for efficient power transmission, the connector delivers stable current flow with low contact resistance and excellent insulation protection. Its reliable structure ensures consistent performance in demanding environments.
Electrical Specifications
- Current Rating: 2.0A
- Rated Voltage: 60V
- Dielectric Withstand Voltage: 500V
- Contact Resistance: 30mΩ
- Insulation Resistance: 500mΩ
Durable Gold-Plated Contacts
The connector uses high-quality gold-plated contact terminals to improve conductivity, minimize signal loss, and enhance corrosion resistance. This ensures reliable electrical connections even after repeated use.
High Durability & Long Service Life
Designed for long-term industrial and commercial use, the connector supports up to 10,000 insertion and removal cycles, making it ideal for devices requiring frequent battery replacement or maintenance.
Wide Operating Temperature Range
Built for demanding environments, the connector operates efficiently within a temperature range of -55°C to +85°C, ensuring stable performance under both high and low temperature conditions.
Compact SMT Design
The compact SMT (Surface Mount Technology) structure allows efficient PCB assembly and secure integration into modern compact electronic devices while saving installation space.
Environmentally Friendly Materials
The connector is fully:
- RoHS Compliant
- Halogen Free Compliant
This ensures safer and environmentally responsible manufacturing standards.
Ideal Applications
Suitable for:
- POS Machines
- Mobile Phones
- Handheld Payment Terminals
- Communication Equipment
- Portable Electronics
- Smart Devices
- Industrial Electronic Products
Product Features
- 2.5mm Pitch 3-Pin Design
- Stable Power Transmission
- Gold-Plated Contacts
- SMT Mounting Type
- Compact & Lightweight Structure
- High Durability up to 10,000 Cycles
- Wide Temperature Resistance
- Reliable Electrical Protection
- RoHS & Halogen Free Certified
Customization Services
Customized connector solutions are available based on specific project requirements, including:
- Connector Structure Customization
- Pin Configuration Adjustment
- OEM & ODM Manufacturing
- Packaging Customization
- Drawing-Based Development
Designed for professional electronic manufacturing and high-performance device integration.
