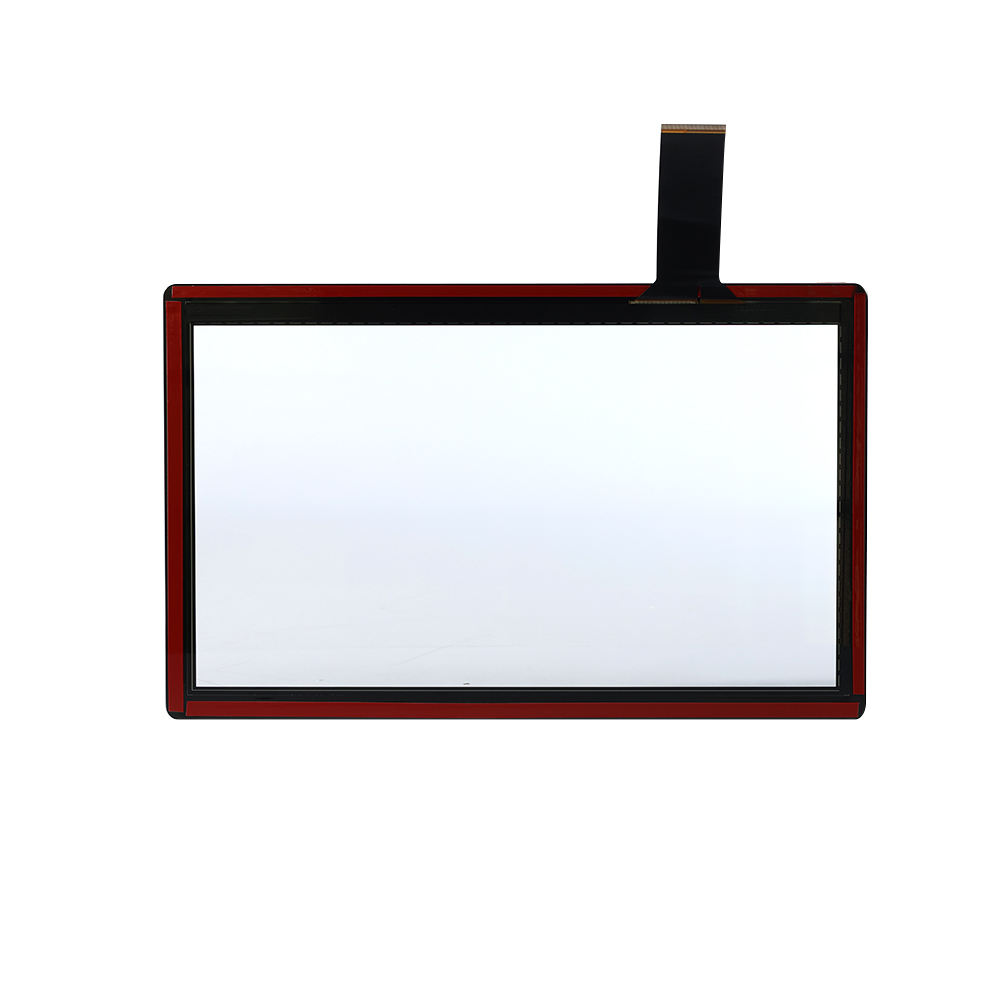

Advanced Multi-Touch Capacitive Technology
This 15.6-inch projected capacitive touch panel is engineered to provide smooth, accurate, and highly responsive touch interaction. Supporting up to 20 touch points, it enhances user experience for POS systems, interactive terminals, industrial control systems, and commercial display applications.
High-Precision Touch Performance
Built with advanced PCAP (Projected Capacitive) technology, the touch panel offers fast response times, precise touch recognition, and stable performance for multi-user and gesture-based operations.
Multiple Interface Support
The touch screen supports various communication interfaces for flexible integration:
- USB
- I2C
- RS232
This ensures compatibility with a wide range of embedded systems, industrial computers, and POS terminals.
Durable Glass Construction
Available in multiple structure options including:
- G+G
- P+G
- G+F
- G+FF
The panel features strong surface durability with optional 6H or 7H hardness levels for enhanced scratch resistance and long-term reliability.
Wide Operating System Compatibility
The touch panel supports multiple operating systems, making integration simple across various platforms:
- Windows 7/8/10/11
- Android
- Linux
- Mac
- QNX
Customization Options Available
The product supports extensive customization to meet specific project requirements, including:
- Waterproof design
- Glove touch support
- Stylus touch support
- Anti-glare (AG) coating
- Anti-reflective (AR) coating
- Anti-fingerprint (AF) treatment
- Custom silk-print colors
- Custom touch points
High-Quality Touch Controller Support
Compatible touch controller options include:
- EETI
- ILITEK
- WEIDA
These controllers provide stable touch performance and excellent system compatibility.
Key Features
- 15.6-inch projected capacitive touch panel
- Supports up to 20 touch points
- USB, I2C, and RS232 interface support
- High-precision multi-touch performance
- Durable scratch-resistant surface
- Supports glove and stylus touch
- Multiple touch controller compatibility
- Wide OS compatibility
- Custom waterproof and anti-glare options
- Designed for commercial and industrial use
- 1-year warranty included
Applications
Ideal for:
- POS systems
- Industrial control equipment
- Self-service kiosks
- Interactive displays
- Retail terminals
- Medical equipment
- Smart home systems
- Embedded computer systems
- Automation equipment
- Commercial touchscreen devices
Technical Specifications

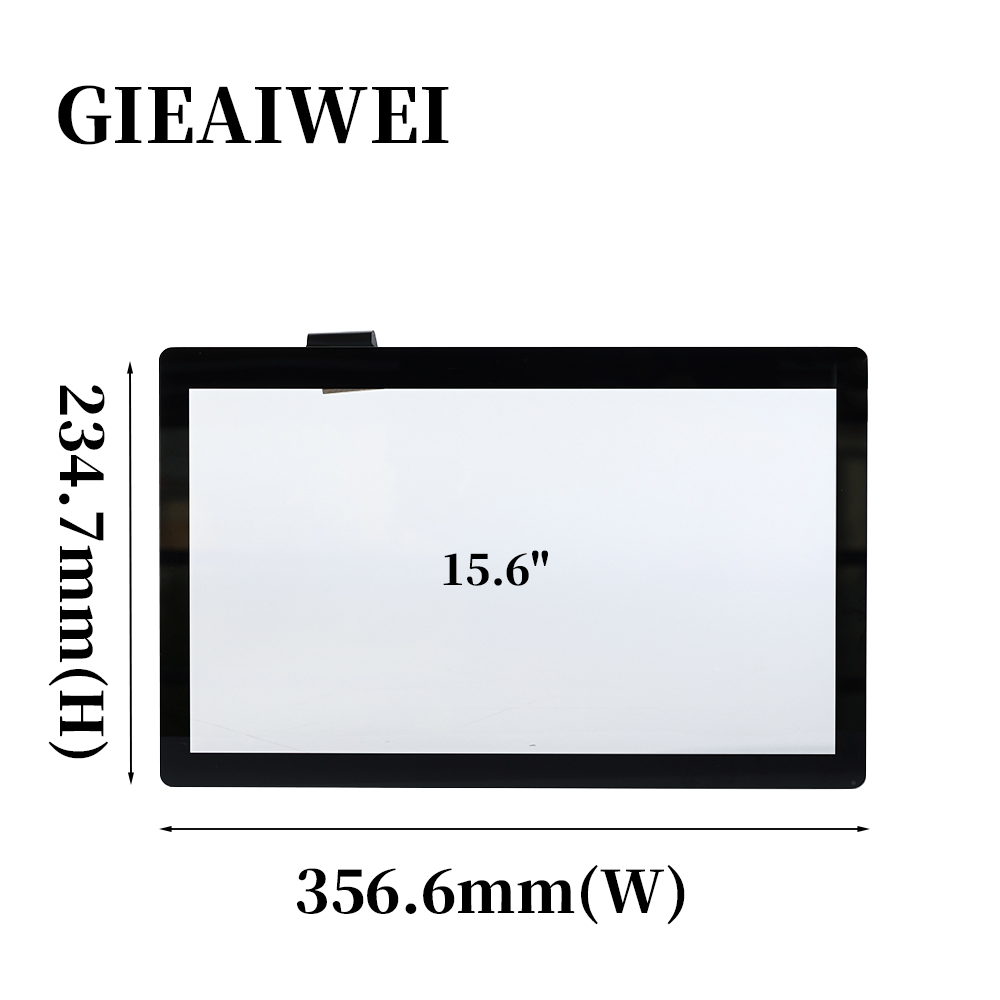

- Screen Size: 15.6 Inch
- Aspect Ratio: 16:9
- Touch Technology: Projected Capacitive (PCAP)
- Touch Points: 10-point or customizable
- Interface: USB / I2C / RS232
- Surface Hardness: 6H / 7H optional
- Resolution Area: 344 × 194 mm
- Color: Black or customized
- Warranty: 1 Year

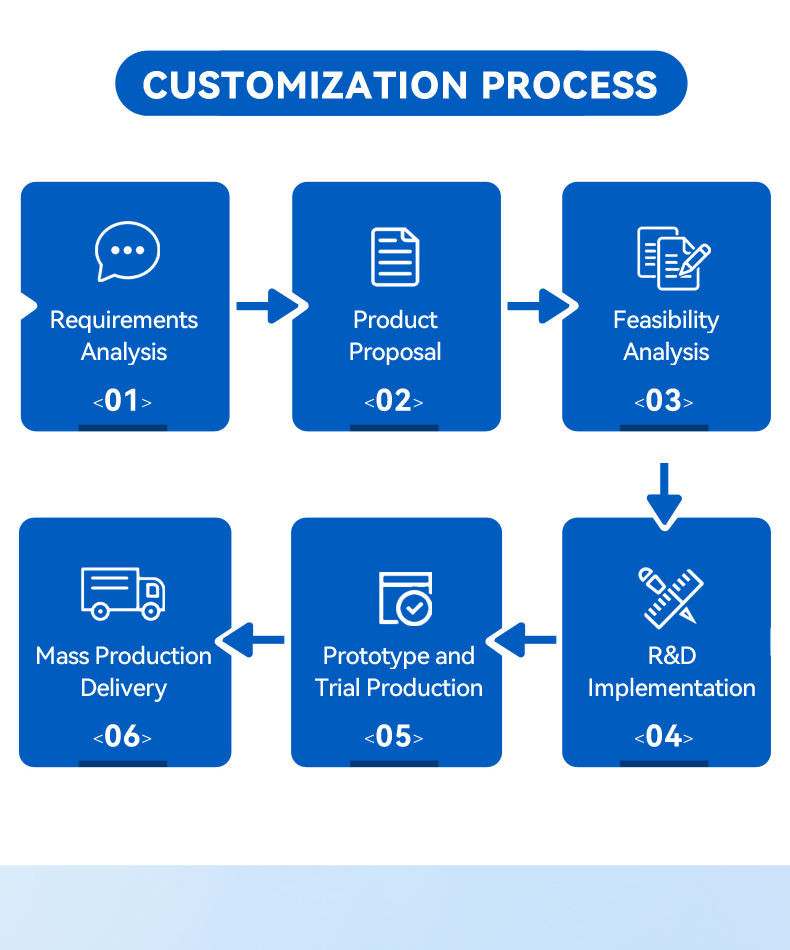

OEM & ODM Support
Customization services include:
- Custom logo and branding
- Interface customization
- Waterproof solutions
- Special glass coatings
- Touch sensitivity adjustments
- Industrial project integration support
- Custom dimensions and structures available
