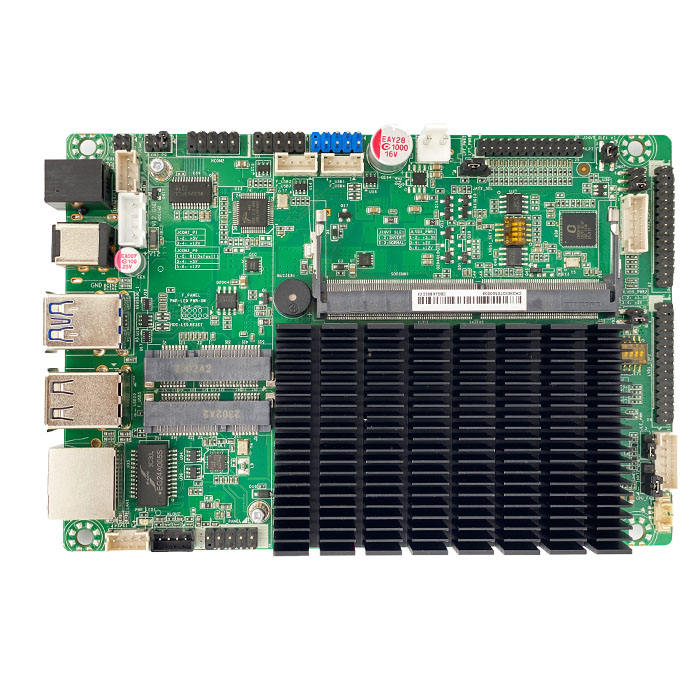

The 3.5 Inch Mini-ITX Industrial Motherboard is a high-performance embedded board powered by Intel Gemini Lake J4125 processor. Featuring DDR4 support, dual display output, Gigabit LAN, multiple USB ports, and industrial-grade stability, it is ideal for POS systems, kiosks, automation equipment, and smart embedded devices.
Key Features
- Onboard Intel J4125 quad-core processor
- Compact 3.5-inch Mini-ITX design
- Supports DDR4 memory up to 8GB
- Dual display output support
- Built-in Gigabit Ethernet LAN
- Multiple USB 2.0 and USB 3.0 ports
- Supports WiFi and Bluetooth expansion
- Industrial-grade stable operation
- DC 12V power supply
- Compatible with Windows and Linux systems
Specifications
- Processor: Intel Gemini Lake J4125
- Chipset: Intel Gemini Lake R

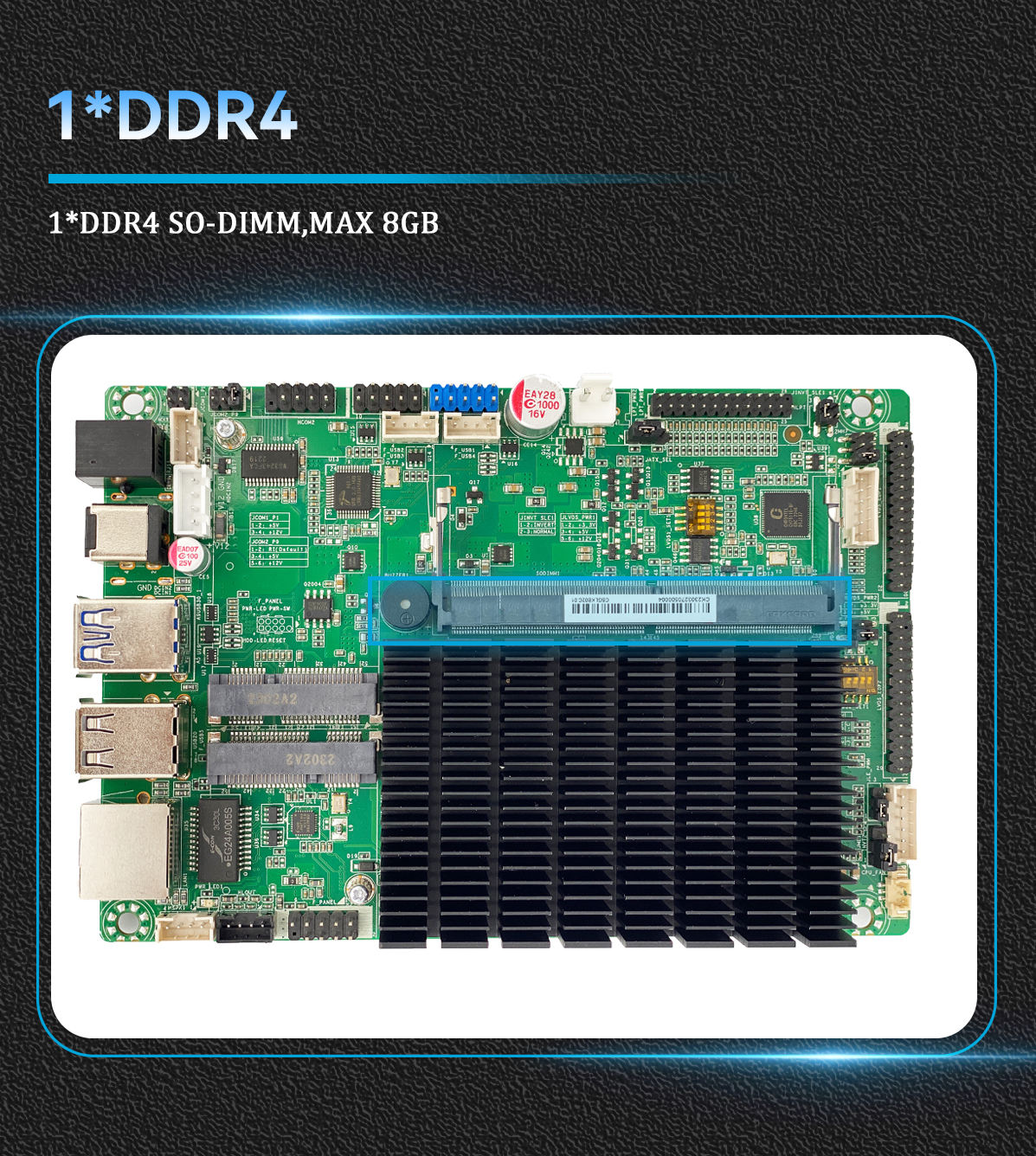

- Memory: 1× DDR4 SO-DIMM, up to 8GB
- Storage: 1× mSATA
- Display Output: LVDS / eDP dual display support
- LAN: Realtek RTL8111 Gigabit Ethernet
- USB Ports: 2× USB 3.0 + 8× USB 2.0
- COM Ports: 2× RS232

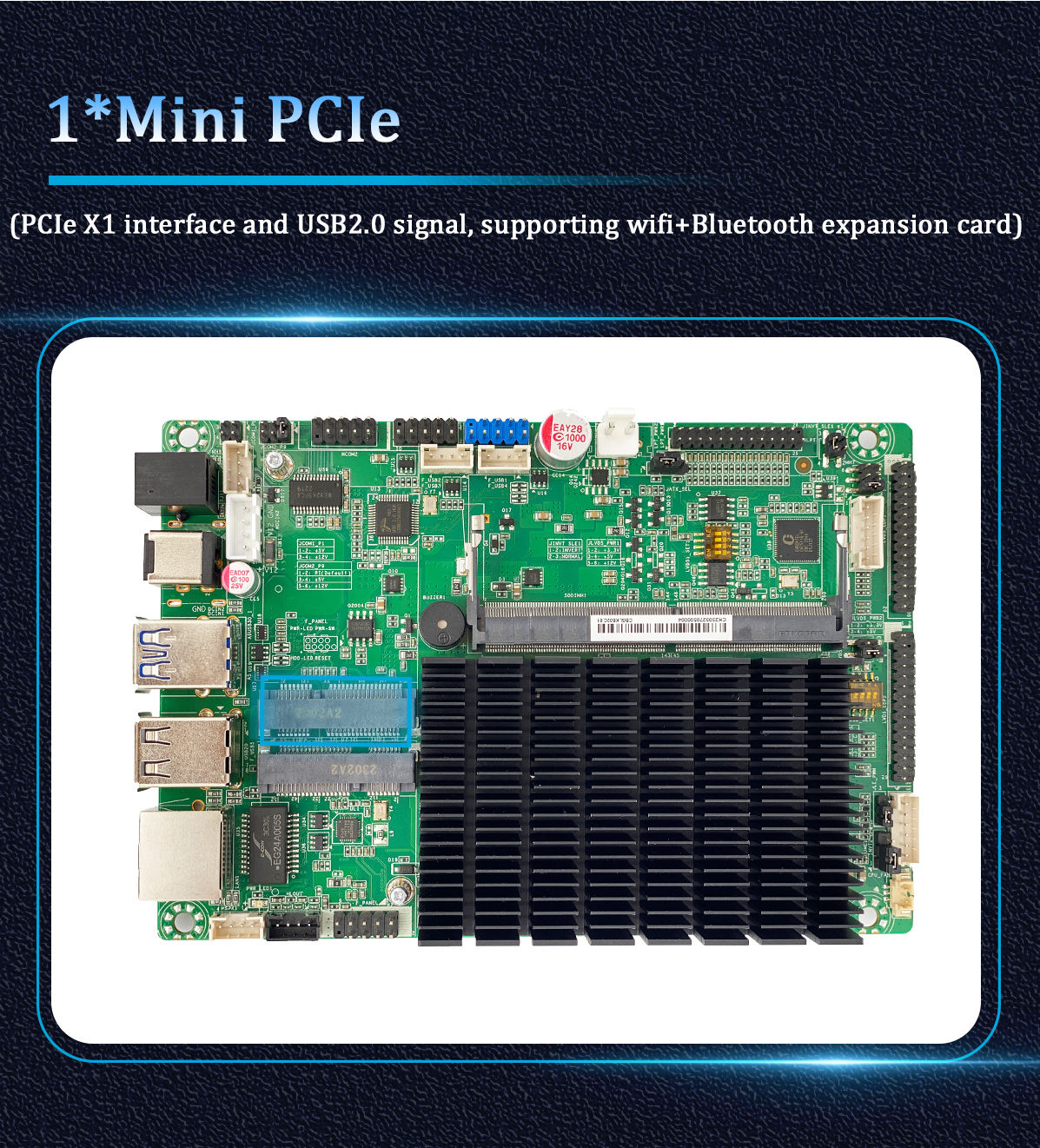

- Expansion Slot: Mini PCIe for WiFi/Bluetooth
- Power Supply: DC 12V
- Operating System: Windows 10 / Linux
- Board Size: 148 × 102 mm
- Operating Temperature: -10°C to 50°C
Applications
- POS machines
- Self-service kiosks
- Industrial automation systems
- Embedded control devices
- Digital signage systems
- Smart retail terminals
- Industrial computers
Packaging & Delivery
Each motherboard is securely packed with protective materials to ensure safe transportation and reliable delivery for industrial and commercial applications.
