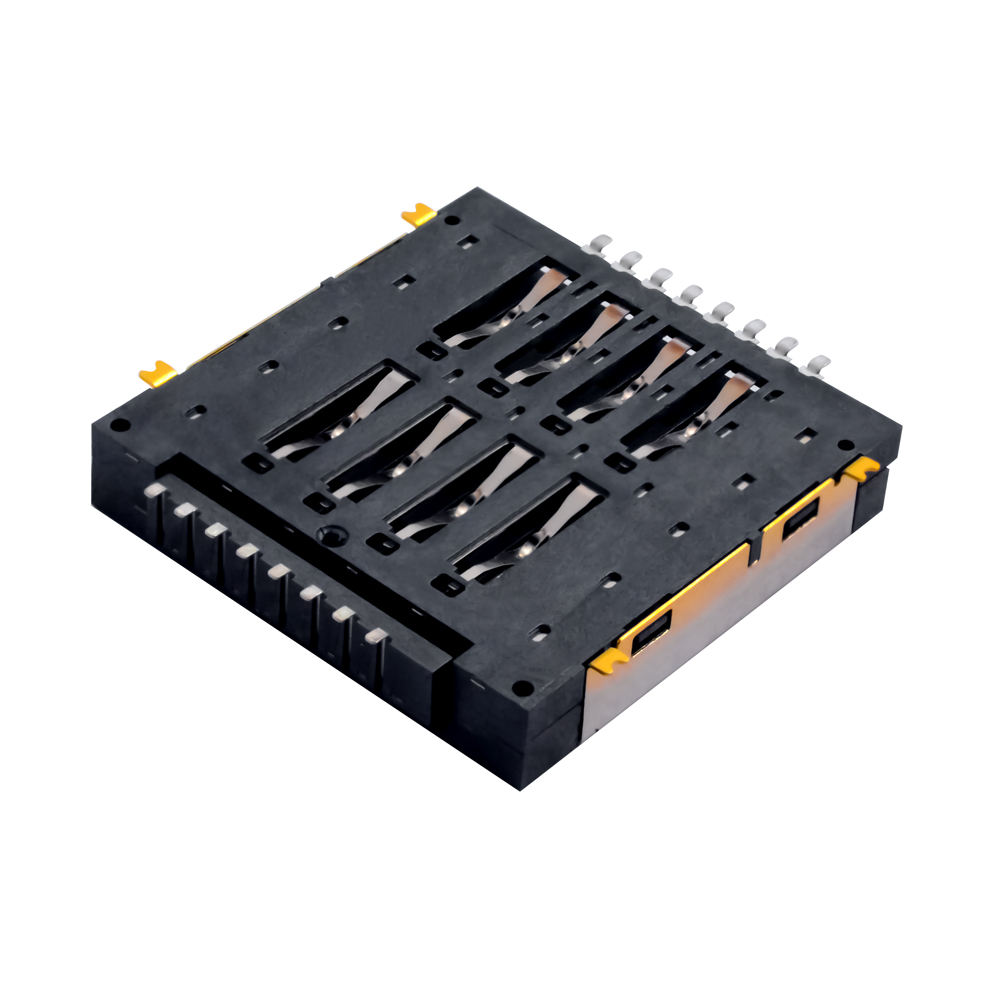

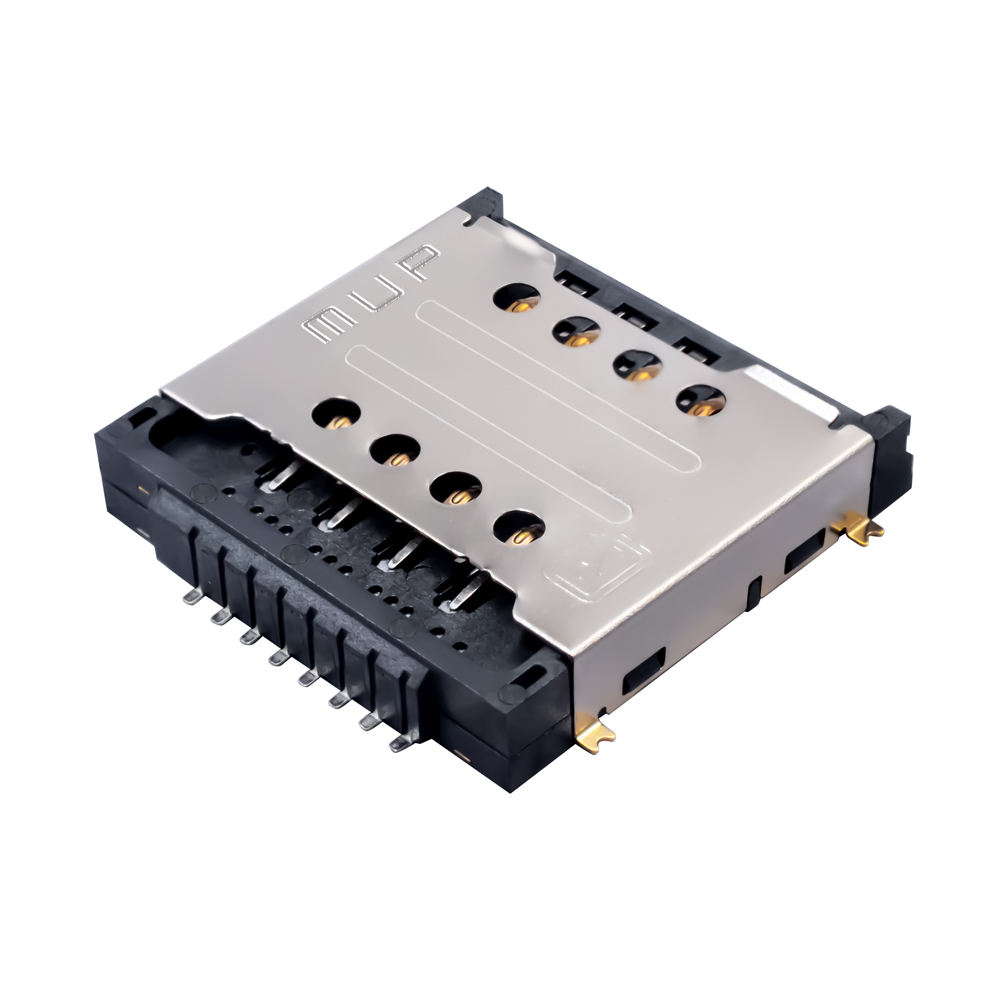

MUP-C7046-01 Dual Board SIM Card Connector
The MUP-C7046-01 SIM Card Connector is a compact and durable push-pull card socket designed for POS machines, communication devices, smart terminals, and embedded electronic systems. Engineered with high-quality materials and precision manufacturing, this connector ensures stable signal transmission and reliable long-term performance.
Compact & Reliable Design

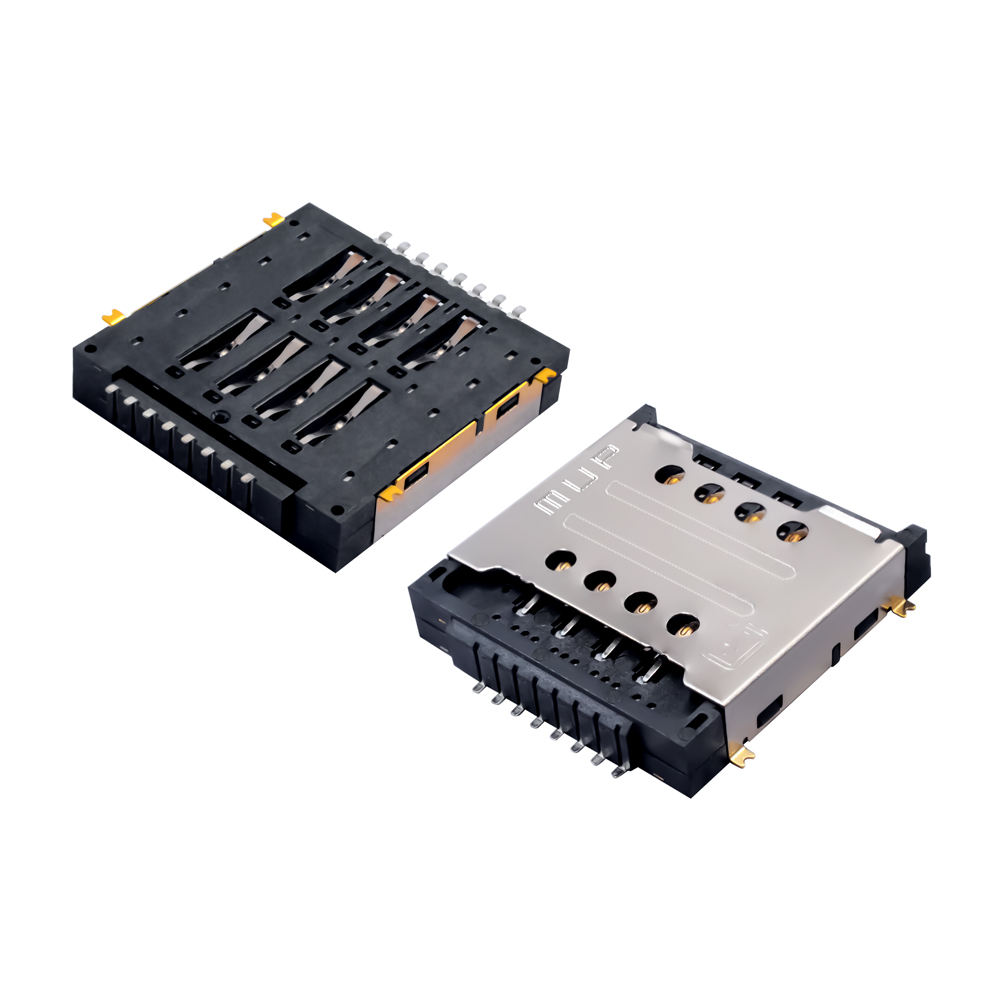

Designed with a slim 3.00mm profile, the connector is ideal for compact PCB layouts and space-saving electronic devices. The dual-board connector structure improves connection stability and supports efficient integration into modern POS terminals and communication equipment.
Durable Push-Pull Card Mechanism
The push-pull SIM card socket provides smooth card insertion and removal while maintaining secure contact performance. Built for durability, the connector supports a minimum of 5,000 insertion and removal cycles for long-lasting reliability.
High-Quality Contact Materials
The connector uses phosphor bronze contact pins with gold-over-nickel plating to ensure excellent conductivity, corrosion resistance, and stable electrical performance. The thermoplastic insulator meets UL94V-0 safety standards for enhanced durability and safety.
Stable Electrical Performance
Engineered for reliable data communication, the connector supports:
- Rated Voltage: 50V Max
- Rated Current: 1A Max
- Low Contact Resistance
- High Insulation Resistance
- Strong Dielectric Withstanding Voltage
These features ensure stable and secure signal transmission for electronic applications.
SMT Mounting for Easy PCB Integration
The connector adopts SMT (Surface Mount Technology) mounting, allowing efficient automated PCB assembly and stable installation without mounting posts.
Wide Application Compatibility
Suitable for various electronic products, including:
- POS Machines
- Smart Payment Terminals
- Network Communication Devices
- Automotive Electronics
- Smart Meters
- Set-Top Boxes
- DTV Devices
- Industrial Electronics

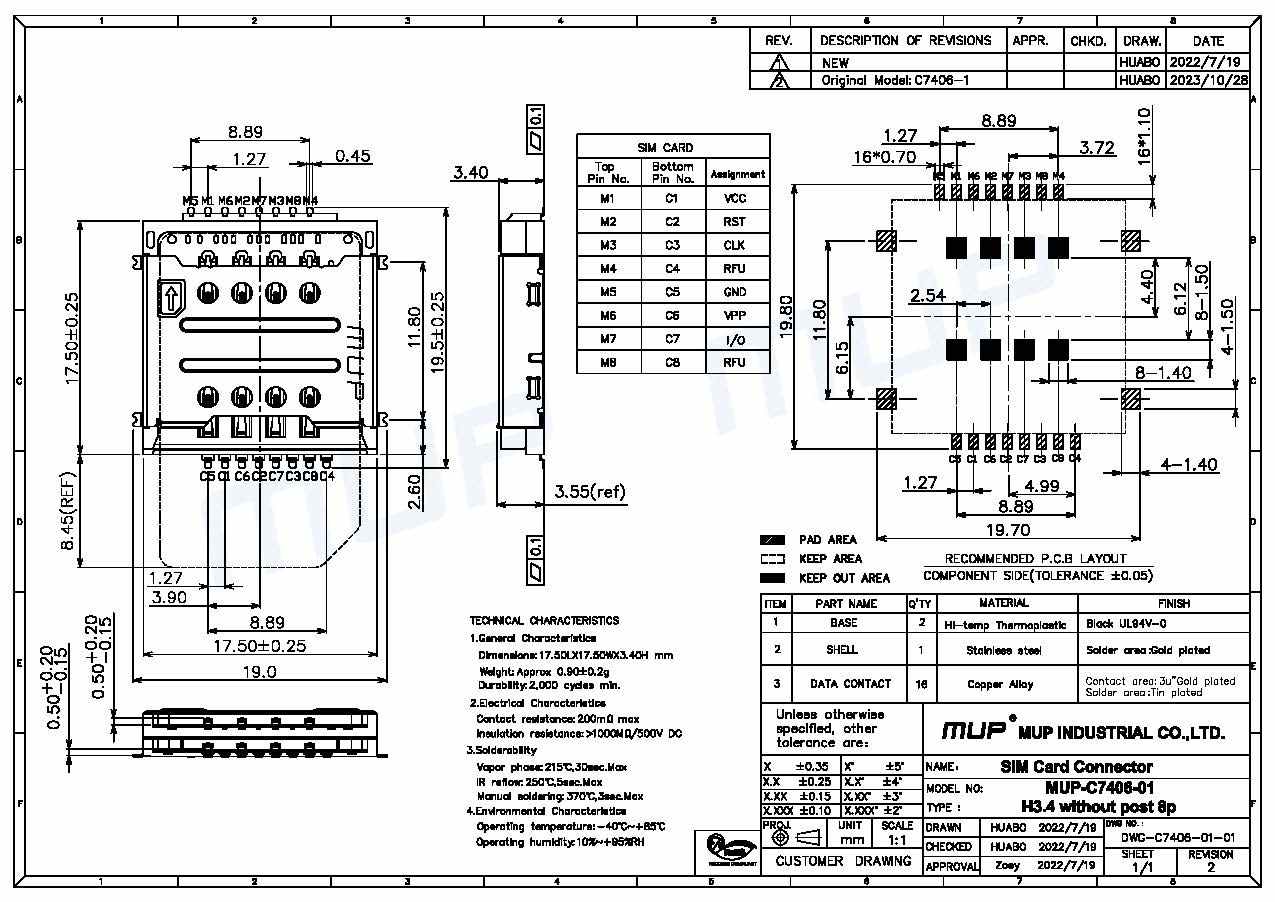

Product Specifications
- Model: C7046-01
- Brand: MUP
- Type: SIM Card Connector
- Connector Gender: Female
- Card Type: GSM11.11
- Contact Pins: 8+8 Pins
- Material: Phosphor Bronze
- Plating: Gold over Nickel
- Plastic Material: LCP
- Height: 3.00mm
- Color: Black
- Packaging: Tape & Reel
- Mounting Type: SMT
Quality & Certification
Manufactured under strict quality standards, the connector complies with:
- RoHS Certification
- ISO 9001:2015
- ISO 14001:2015
The products are widely used by global electronic brands and exported to multiple international markets.
OEM & Customization Support
Customization services are available, including:
- Minor Customization
- Drawing-Based Customization
- Sample-Based Customization
- Full OEM/ODM Support
Designed for professional electronic manufacturing and high-volume industrial applications.
